APLUSLIFT HW-10KOH-A 10000 LB 2-POST OVERHEAD HEAVY DUTY CAR LIFT WITH 3 YEAR WARRANTY
Original price was: $2,229.00.$1,299.99Current price is: $1,299.99.
Description
🚗 The Ultimate 2-Post Overhead Lift for Professional Auto Shops & Home Garages
The APlusLift HW-10KOH-A is a 10,000 LB 2-post overhead car lift engineered for automotive professionals and serious DIY mechanics. Built with a reinforced double “S” column design, combo arm assembly (symmetrical & asymmetrical), and a high-efficiency hydraulic system, this lift delivers maximum stability, safety, and lifting power.
Featuring a chain-driven dual hydraulic system, CE-certified safety features, and an easy-to-use design, the HW-10KOH-A is perfect for car repair, maintenance, and detailing.
🔧 Why Choose the APlusLift HW-10KOH-A?
✅ 10,000 LB Heavy-Duty Lifting Capacity – Designed for cars, SUVs, and light trucks.
✅ Overhead Design – Ideal for Professional Garages – Keeps the floor clear for easy access.

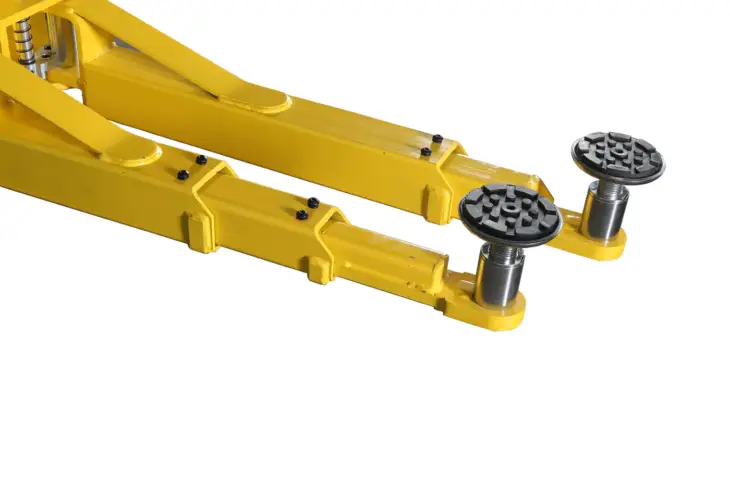

✅ Combo (Symmetrical & Asymmetrical) Arm Assembly – Provides versatile lifting options for various vehicles.
✅ 6’9” Max Lifting Height with Truck Adapters – Offers ample undercarriage access.
✅ Double-Point Safety Lock Release – Secure and effortless lowering with dual safety locks.
✅ Dual Hydraulic Cylinders – Chain Drive System – Powerful, smooth, and reliable lifting operation.
✅ Heavy-Duty 3/8” Diameter Cables & 5” Pulley – Reduces stress for long-lasting performance.
✅ Automatic Arm Lock Restraints – Keeps vehicles securely positioned during service.
✅ Ultra-High Molecular Self-Lubricating Nylon Slider – Ensures smooth carriage movement.
✅ CE Certified for Safety & Quality – Tested for 115% dynamic load & 150% static load capacity.
✅ Industry-Leading 3-Year Warranty – Comprehensive 36-month parts protection.
📊 Full Specifications
🔹 Performance & Lifting Capacity
- Lifting Capacity: 10,000 LB
- Maximum Lift Height (With Truck Adapters): 81”
- Maximum Lift Height (Without Truck Adapters): 75”
- Minimum Pad Height: 4.5”
- Lift Time: 50 Seconds
- Locking Mechanism: Double-Point Safety Lock Release
- Driving Mode: Dual Hydraulic Cylinders – Chain Drive System
🔹 Build & Design
- Overall Height: 143 3/16”
- Overall Width: 134 5/16”
- Drive-Through Width: 100”
- Column-to-Column Width: 109”
- Column Cross Section: 11”L x 7”W
- Column Steel Thickness: 13/64”
- Carriage Steel Thickness: 15/64”
- Carriage Yoke Thickness: 9/16”
- Arm Steel Thickness: 15/64”
- Base Plate Steel Thickness: 5/8”
- Arm Assembly: Combo (Symmetrical & Asymmetrical) Arm Assembly
- Front Arm Range: Straight Front 3-Stage (22 7/8” to 42 5/8” reach)
- Rear Arm Range: Straight Rear 2-Stage (33 5/8” to 52 7/8” reach)
- Finish: Durable Powder Coated (Rust & Corrosion Resistant)
- Adjustable Truck Adapters: One Set of 4” Tall Truck Adapters Included
🔹 Power & Electrical
- Motor: 220V Single Phase | 3HP | 10A (Recommend a 30A Breaker)
- Hydraulic Oil Requirement: 3-5 gallons AW32/AW46 (Not Included)
🔹 Safety & Features
- CE Certified for Quality & Safety – Meets strict safety regulations.
- Heavy-Duty 3/8” Diameter Cables – Longer life & increased stability.
- Automatic Arm Lock Restraints – Secures the vehicle in place for safe operation.
- Ultra-High Molecular Nylon Slider – Ensures smooth carriage movement.
- Relief Valve Built into Power Pump – Prevents overloading & system damage.
- Rubber Door Guards – Protects vehicles from accidental dings & damage.
- Up-Limit Switch – Prevents cylinders from overextending.
- Heavy-Duty Steel Construction – Reinforced for maximum strength & durability.
📦 Shipping & Installation
- Shipping Weight: 1,450 LB
- Shipping Dimensions: 113”L x 22”W x 40”H
- Concrete Requirement: 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below)
Parts Included:
✔ 4 Adjustable Screw Pads
✔ 4 Pieces of 4” Tall Truck Adapters (Height Extensions)
✔ 10 Anchor Bolts
✔ 10 Shims
✔ Tool Trays & Toe Guards
